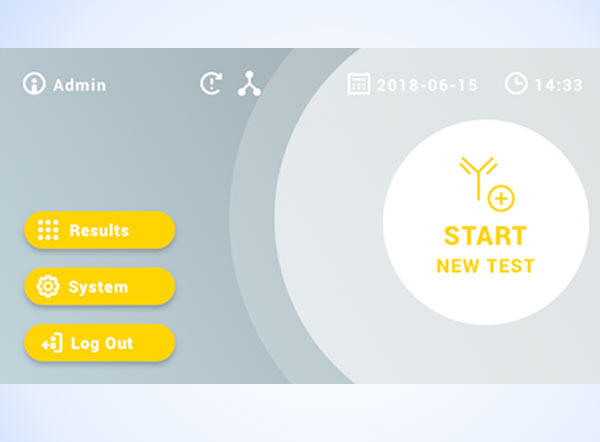

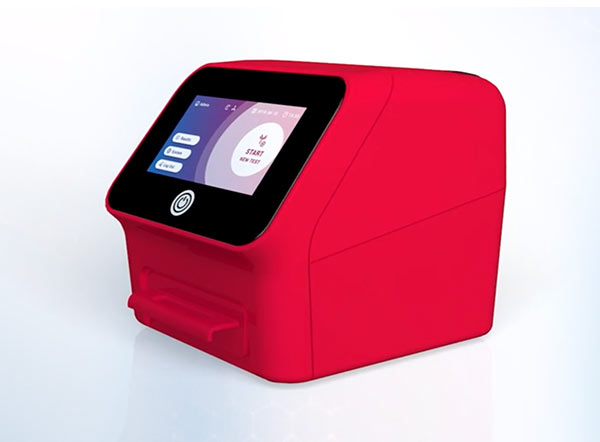

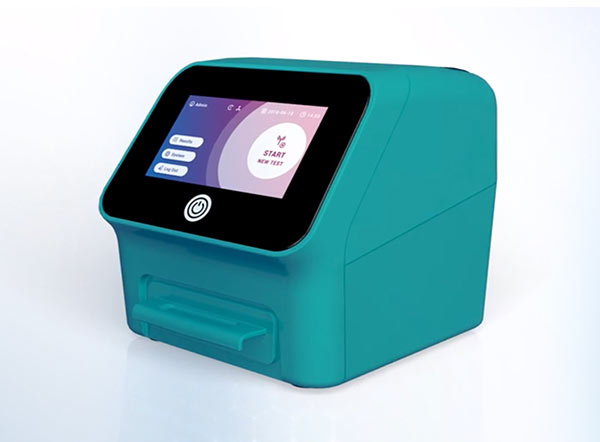

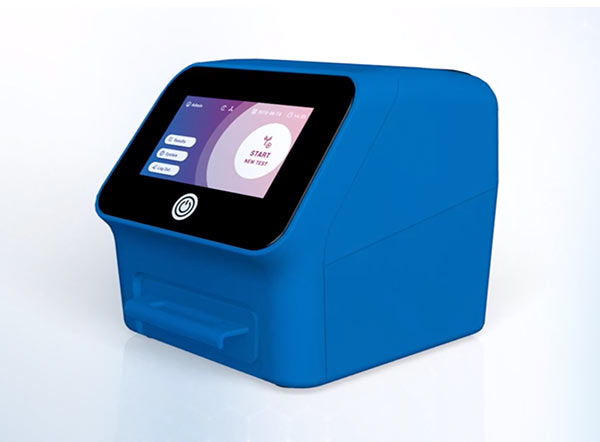

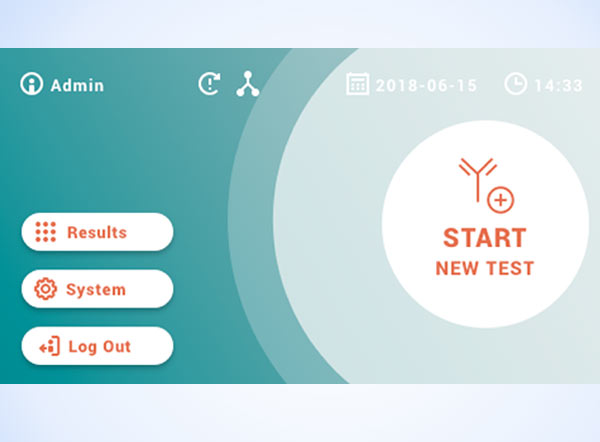

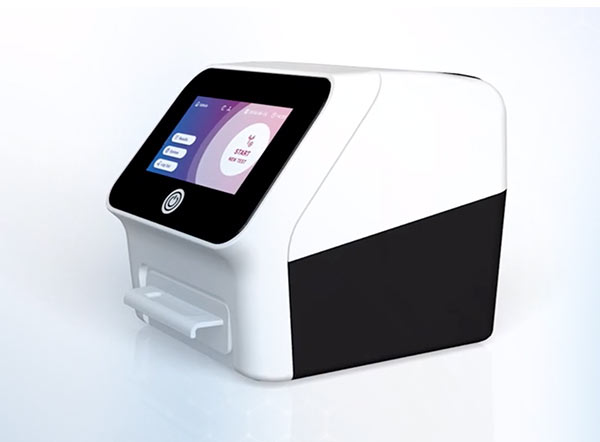

A wide range of customization options allows you to tailor your rapid test reader to make it easy to use and safe for your customers.

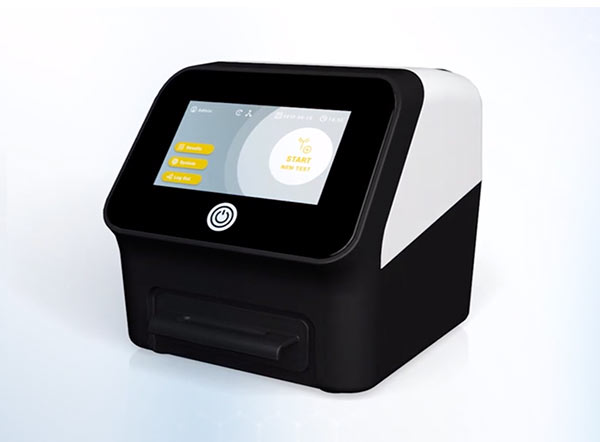

The state-of-the-art rapid test reader for colorimetric lateral flow assays
High class performance & flexibility
- Multiple ROI Definition per cassette or strip
- High contrast sharpness and sensitivity due to multi color illumination via LEDs
- Light-tight measuring chamber for high accuracy and precision
- High flexibility – drawer adapts to any test or strip
- Wide measurement area: 50 mm x 90 mm
Superior usability

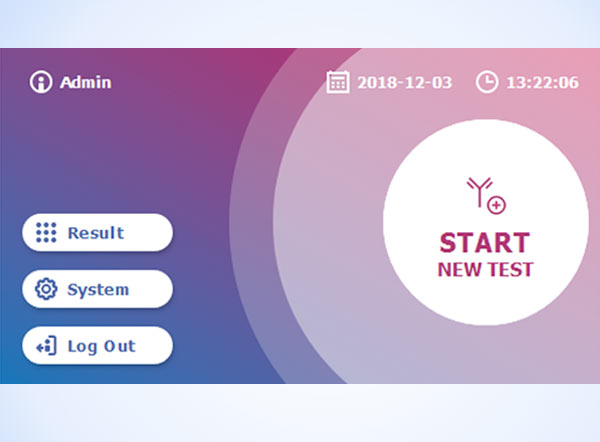

- 4,3´´ touch display
- intuitive workflow with few user interactions
- fully barcode supported test and patient ID entry
- user centric design among DIN EN ISO 9241-210
- automated test recognition
Verified & controlled quality
- reproducible results on every device
- verified components
- regulatory requirements
- internal reference and calibration checks
- controlled manufacturing process
High connectivity
- read method file via 2D Barcode
- read patient ID via external 1D/2D Barcode
- plug and play printer and barcode reader
- export raw data files on USB stick
- connection to DLX connect SW
- DLX connect as local data management system or
- DLX connect as adapter to LIS,KIS, middleware or physician office management software
- HL7 and other communication protocols feasible
- BI-directionality connection

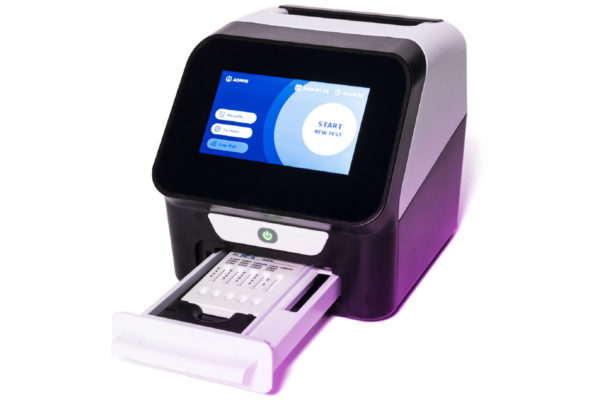

Learn all about the ESEQuant Flex
Illumination concept
The ESEQuant Flex uses a novel illumination concept for the objects of choice: The light source is placed on same level than the photographed object and emitted light is reflected and scattered on the dome above the light source. This leads finally to homogeneous illumination of the test object and avoids disturbing shadows or reflections on the raw picture.
Position independent placement
The algorithms of the ESEQuant Flex allow object recognition among pre-defined geometric properties of the test object. Therefore, the orientation of the test object can vary within the drawer. This gives the user the convenience to place same test objects (e.g. lateral flow cassettes) in different orientation into the drawer or even use more than just one dedicated cassette design. The drawer is therefore no more a specific customized tool for only one single cassette type.
Detection Performance
- 5 Mpix. black/white camera (8 Bit)
- Multi color illumination to recognize color change tests
- Optimized Software for Lateral Flow tests
- Calibration and Self-adjustment among internal reference material
- High Performance CPU
- Low Inter device variation < 3% CV
- High reproducibility between different readings < 0.5% CV
| Size (L x W x H) | 150 x 150 x 150 mm (6 x 6 x 6 in) |
| Weight | Approximately 1.2 kg (2.6 lb) |
| User interface | Interactive 10.9 cm (4.3 in.) touchscreen • GUI with several languages • 2D barcode reading functionality |
| Connections | 3 x USB • Ethernet • WiFi module optional |
| Connectivity | External bar code reader • label printer support • data management software |
| Power supply | 100–240 VAC, 50/60 Hz • power bank support |
| Operating conditions | 15–35°C (59–95°F) • humidity 10–70% |
GUI: graphic user interface;
| Optical system | 5 Mpix camera (8Bit) • industrial standard |
| Signal detection | colorimetric test bands and dots (300µm) |
| Illumination | 3 color LEDs • optimized for homogeneous illumination of a wide range of test cassettes |
| Colorimetric detection | Colloidal gold • colored latex beads • carbon particles • colored cellulose beads etc. |
| Surveillance | Supervision of optical system among multiple calibration standards (inside) |
LED: light-emitting diode.
| Test strip dimensions | Flexible adaptation possible: Dipstick: width 4–6 mm; length 100 mm Cartridge: up to 120 x 50 x 15 mm (L x W x H) |
| Number of test strips | up to 5 (dipstick, width 5 mm) |
| Number of test lines per strip | Up to 19 test/control lines per strip |
| Memory capacity | Up to 100 test methods and up to 1000 test results |
| Measurement time | <20 seconds, one strip, 2 lines |
| Result interpretation | Qualitative, semi-quantitative and quantitative detection with several algorithms available |
| Reliability | >99,7 % |
| Reproducibility | Intra-device CV: < 0.5%; Inter-device CV < 3% |
CV: coefficient of variation
